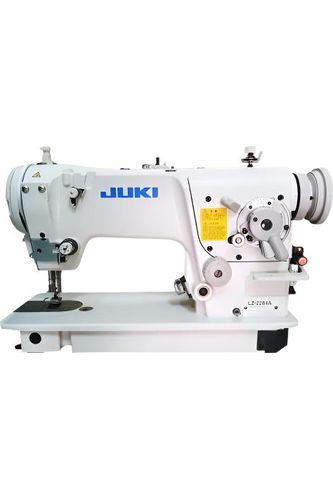

JUKI LZ-2284A Machine à coudre industrielle à point noué à 1 aiguille à grande vitesse Std/3 étapes en zigzag

Equipped with two different functions, the machine is available to handle a wider range of applications.

LZ-2284A (Standard/3-step Zigzag) can perform two stitching patterns by one machine, thereby increasing the machine operation rate.

Switch between the standard zigzag stitching pattern and a 3-step zigzag stitching pattern with simple one-touch control.

The operator can easily switch the needle-throwing pattern between the standard and 3-step zigzag stitching patterns using the lever located in the free space under the arm. When changing the sewing product or design, there's no need to adjust the sewing machine head or machine layout.

JUKI's unique thread trimming mechanism.

JUKI-specific loop spreading-structure knife sliding system enables thread trimming without fail whether needle throws to the right or the left.

The adjustable range of the feed mechanisms has been widened, thereby upgrading the machine's responsiveness to materials.

The feed mechanism has been improved by widening the adjustable range of the height and inclination of the feed dog. The feed locus has been optimized while placing great emphasis on the feed locus at the moment the needle penetrates the material to form a stitch. The weight of the feed mechanism has been reduced by using parts most of which are made of aluminum material. This facilitates the sewing of overlapped sections of material that have to be securely held between the presser foot and the feed dog during sewing.

Adjustment for various feed timings.

Marker lines engraved on the faceplate and the pictorial indication facilitate adjustment of the needle-to-feed timing and the hook timing.

Adjustment of oil quantity in the hook.

The oil feeding path of the LZ-2280A Series has been reviewed to enable the feeding of the consistent quantity of oil.
