PRODUCT FEATURES

The adjustable range of the feed mechanisms has been widened

The feed mechanism has been improved by widening the adjustable range of the height and inclination of the feed dog. The feed locus has been optimized while placing great emphasis on the feed locus at the moment the needle penetrates the material to form a stitch.

The weight of the feed mechanism has been reduced by using parts most of which are made of aluminum material. This facilitates sewing of overlapped sections of material that have to be securely held between the presser foot and the feed dog during sewing.

Adjustment for various feed timings

Marker lines engraved on the face plate and the pictorial indication facilitate adjustment of the needle-to-feed timing and the hook timing.

Standard / Standard wider zigzag

The standard zigzag stitching machine creates softly finished seams. The needle rocking mechanism is provided with a triangular cam which helps produce beautiful seams with consistency.

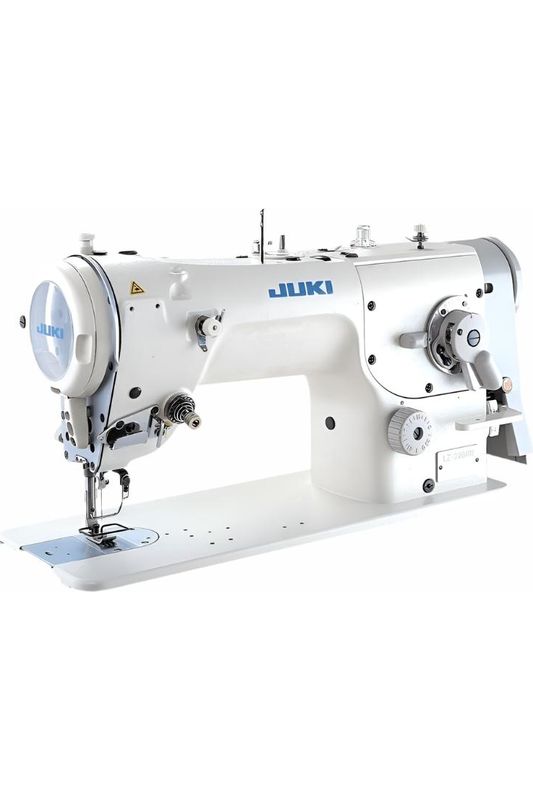

LZ-2280A

The sewing machine produces soft seams with consistency with a low tension applied to the thread problems which are associated with low-tension sewing such as "double-catching" and "irregular stitches", as well as factors which affect seam quality such as "thread path", "thread bending resistance", "feed locus", "needle locus" and "timing" have been thoroughly reviewed, thereby successfully producing soft seams. The machine has adopted JUKI's established genuine hook and thread take-up lever.

Adjustment of oil quantity in the hook

Oil feeding path of the LZ-2280A Series has been reviewed to enable feeding of consistent quantity of oil.

SPECIFICATIONS

Model

LZ-2280A

Stitch System

Standard zigzag

Max Sewing Speed

5000 sti/min

Max Zigzag Width

5 mm

Max Feeding Amount

2.5 mm

Lift of the Presser Foot

By hand: 5.5 mm
By knee: 10 mm

Hook

DP hook (with titanium-treated inner hook)

Thread Take Up

Rotary type

Lubrication

Fully automatic

Lubricating Oil

JUKI New Defrix Oil No.1 (equivalent to ISO VG7)

Needle (at the time of delivery)

134SUK (Nm70)

Needle Position Changing Mechanism

Provided as standard

Reverse Feed Stitching Mechanism

Provided as standard

Needle throw pattern cam

Triangular cam

Model

LZ-2280A

Stitch System

Standard zigzag

Max Sewing Speed

5000 sti/min

Max Zigzag Width

5 mm

Max Feeding Amount

2.5 mm

Lift of the Presser Foot

By hand: 5.5 mm
By knee: 10 mm

Hook

DP hook (with titanium-treated inner hook)

Thread Take Up

Rotary type

Lubrication

Fully automatic

Lubricating Oil

JUKI New Defrix Oil No.1 (equivalent to ISO VG7)

Needle (at the time of delivery)

134SUK (Nm70)

Needle Position Changing Mechanism

Provided as standard

Reverse Feed Stitching Mechanism

Provided as standard

Needle throw pattern cam

Triangular cam

Return / Refund Policy

Domestic Machines:  Within 30 days of original purchase date in original packaging and an RMA #. Opened machines will be subject to a 35% restocking fee. Please contact All About Sewing to coordinate an RMA#



Industrial Machines:  All Industrial machines (Juki, Ricoma, Rugged, Kobe) are Final Sale. Exchange/Upgrade will be subject to approval. Please contact All About Sewing to coordinate.



Click here for full refund policy.
