PRODUCT FEATURES

Wider zigzag width

The machine offers outstanding capabilities for the sewing of sports shoes and leather shoes that require a wider zigzag width. The zigzag width can be quickly and easily adjusted by the dial mounted on the front face of the machine.

Higher lift of the presser foot

To ensure smooth sewing of heavy materials, the lift of the presser foot is as high as 14 mm (13 mm for the LZH-1290-7).

Thread trimmer without fail (LZ-1290-7)

The machine's unique thread trimmer mechanism allows the thread trimmer to cut the thread when the needle is either at the left or right end of its zigzag stroke. This mechanism also eliminates the need for adjustment even when the thread count is changed.

BASIC PERFORMANCE

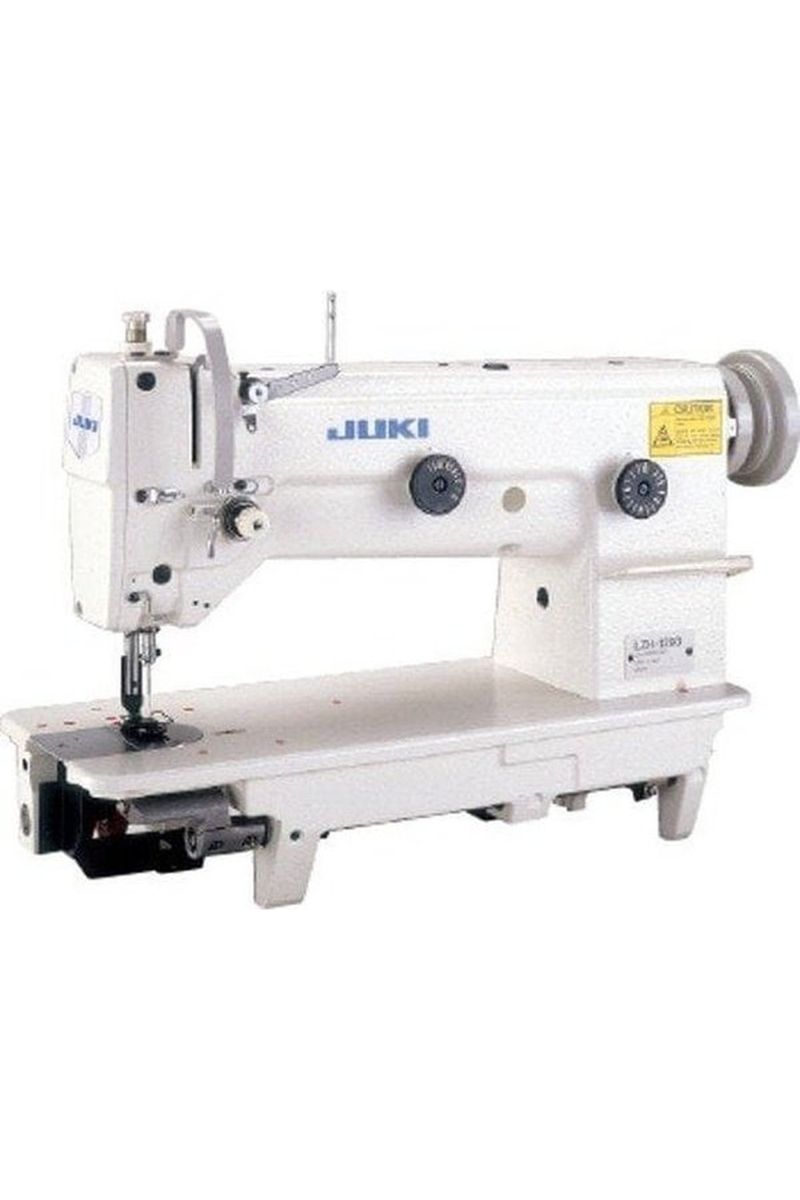

LZH-1290

1-needle, Lockstitch, Zigzag Stitching Machine with Large Hook

The machine is optimally suited for the sewing of sports shoes and leather shoes. The machine tenses thread uniformly over the zigzag stroke to produce beautifully finished stitches at a high speed. With its extended zigzag width, higher presser foot lift, and newly introduced horizontal-axis double-capacity hook, the machine upgrades the functions required for the sewing of heavy materials.

Consistent sewing performance at a high speed

With its newly incorporated triangular cam, the machine uniformly tenses thread in zigzag strokes regardless of the needle position, and the needle always enters the material at right angles. This prevents the needle from swaying during zigzag stitching.

SPECIFICATIONS

Model

LZH-1290

Max Sewing Speed

2,000 sti/min

Max Stitch Length

6mm (normal/reverse feed)

Zigzag Width

Max 8mm (adjustable to 10mm)

Zigzag Width Adjustment Method

By dial

Needle Bar Stroke

35mm

Presser Foot

By knee lifter: 14 mm, by hand lifter: 6 mm

Thread Take-up

Link type

Hook

Horizontal-axis full-rotary double-capacity hook

Needle

SY1906 Nm90~110 (standard Nm110)

Thread

#50~#8, B33~B92, Nm=120/3~30/3

Lubrication

By an oiler (hook : automatic)

Lubricating Oil

JUKI New Defrix Oil No.1 (equivalent to ISO VG7)

Distance from Needle to Machine Arm

295 mm

Bed Size

477 mm×178 mm

Weight of the Machine Head

35kg

Model

LZH-1290

Max Sewing Speed

2,000 sti/min

Max Stitch Length

6mm (normal/reverse feed)

Zigzag Width

Max 8mm (adjustable to 10mm)

Zigzag Width Adjustment Method

By dial

Needle Bar Stroke

35mm

Presser Foot

By knee lifter: 14 mm, by hand lifter: 6 mm

Thread Take-up

Link type

Hook

Horizontal-axis full-rotary double-capacity hook

Needle

SY1906 Nm90~110 (standard Nm110)

Thread

#50~#8, B33~B92, Nm=120/3~30/3

Lubrication

By an oiler (hook : automatic)

Lubricating Oil

JUKI New Defrix Oil No.1 (equivalent to ISO VG7)

Distance from Needle to Machine Arm

295 mm

Bed Size

477 mm×178 mm

Weight of the Machine Head

35kg
