PRODUCT FEATURES

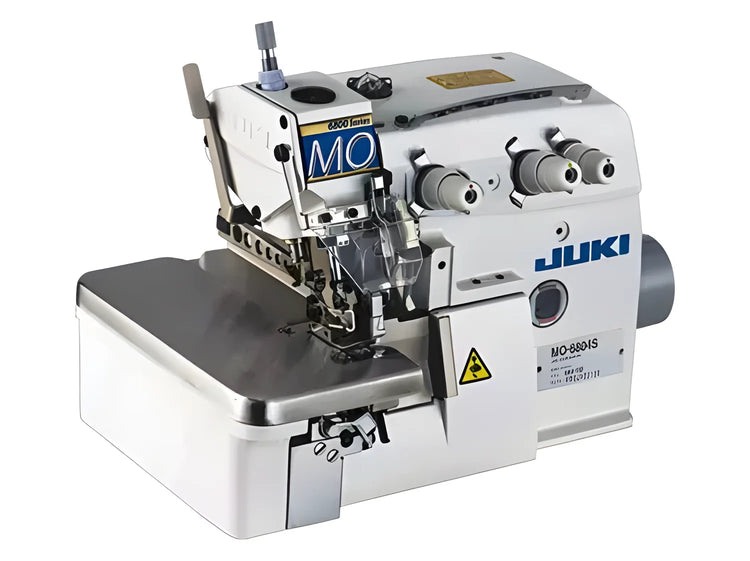

MO-6804S

Automatic thread trimmer with a material sensor

The MO-6800S(D) / DD Series of sewing machine is provided as standard with the side cutter with 2-point material sensor (DD22) and Chain-off the thread trimming device with a 3-point material sensor (DD23). Under the full-automatic mode, the material sensor detects the presence / absence of the material to prevent the operator from erroneously operate the side cutter etc. In addition to the full-automatic mode, the manual mode and the semi-automatic mode can be selected.

Operation panel and control box are integrated with the machine head

The energy-saving and highly efficient servomotor is installed in the direct-drive style. The sewing machine quick lystarts up and stops with increased accuracy, thereby demonstrating improved responsiveness.

USB port

The USB port is standard on the control panel and You can easily upgrade the software. The MO-6800S (D) / DD22, 23 has another one USB port for charging a smartphone, etc.

Operator fatigue reduction (LED light) Standard equipment with all series

For the LED light, the improved toning function with two additional colors (white / light bulb color) is provided. Illuminance of the LED light is adjustable in five levels. This LED light helps reduce the operator’s eye fatigue who is engaged in sewing work for a long time.

The cover sensor unit and cover microswitch unit

The cover sensor unit and cover microswitch unit that detect 1, 2 and 3 (shown right) are closed tightly during sewing, thereby preventing the sewing machine from starting up unexpectedly.

BASIC PERFORMANCE

High-speed, Overlock / Safety Stitch Machine

This advanced overlock/safety stitch machine is easier to use and promises superior cost-effectiveness. The MO-6800S Series responds to various kinds of sewing materials and processes, producing delicate and beautiful soft-to-the-touch seams while further reducing operating noise as well as increasing durability. This advanced overlock/safety stitch machine is easier to use and promises superior cost-effectiveness.

The machine achieves beautifully finished seams of improved quality even when run at a high speed.

The machine is widely applicable to the sewing of light- to heavy-weight materials. Since the machine is provided with a needle thread take-up mechanism and a looper thread take-up lever, it ensures high-quality, well-tensed, and soft seams with a beautiful texture that flexibly correspond to the elasticity of the materials even when run at speeds as high as 7,000 sti/min.

In addition, the machine has a wider and brighter needle entry and provides improved responsiveness to the materials, thereby helping the operator use the machine more easily. The optimally-balanced design of the machine reduces both operating noise and vibration, contributing to more comfortable sewing work.

The machine is provided with functions that contribute to easier operation.

The differential-feed micro-adjustment mechanism, external increasing of the differential feed ratio, and the main feed dog height can all be adjustable on the front face of the sewing machine with a screwdriver. The machine is provided as standard with functions that enable easy and best-suited adjustments according to the material to be used.

SPECIFICATIONS

Model

MO-6804S

Stitch Type

1-needle overlock

Max Sewing Speed

7,000 sti/min

Stitch Length

0.6~3.8 (4.5) mm

Overedging Width (mm)

1.5, 4.0

Differential Feed Ratio

For gathering 1:2 (Max. 1:4), For stretching 1:0.7 (Max. 1:0.6)

Needle

DC×27 (excluding some subclass model)

Model

MO-6804S

Stitch Type

1-needle overlock

Max Sewing Speed

7,000 sti/min

Stitch Length

0.6~3.8 (4.5) mm

Overedging Width (mm)

1.5, 4.0

Differential Feed Ratio

For gathering 1:2 (Max. 1:4), For stretching 1:0.7 (Max. 1:0.6)

Needle

DC×27 (excluding some subclass model)
