Model

DLN-5410N

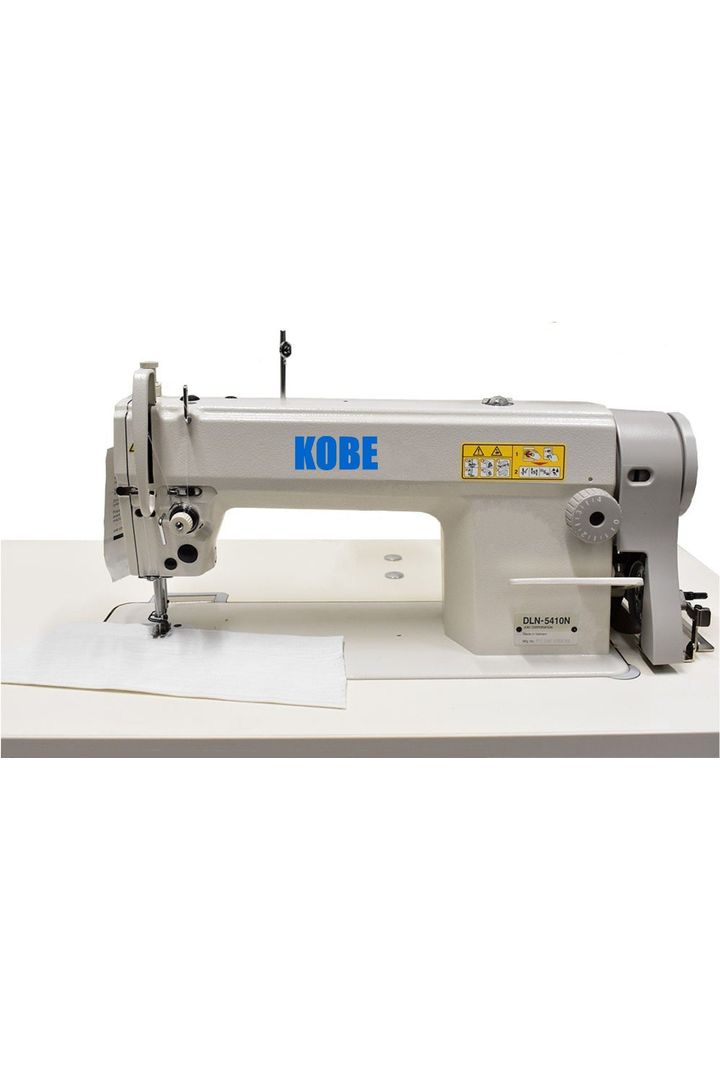

Kobe DLN-5410N 1-needle, Needle-feed, Lockstitch Industrial Machine
Kobe DLN-5410N 1-needle, Needle-feed, Lockstitch Industrial Machine

Kobe DLN-5410N 1-needle, Needle-feed, Lockstitch Industrial Machine

Kobe
$1,999.00
$1,999.00

Does Not Qualify for Free Shipping

Disclaimer:

Table tops may differ from those shown. Unassembled Machines may have a staggered delivery.

PRODUCT FEATURES

DLN-5410N

Applications for sewing medium-weight materials

  • With its needle feed mechanism, the machine supports the operator, promotes efficiency in production, and upgrades the quality of finished products.
  • Sewing mechanism that demonstrates outstanding responsiveness to materials to be sewn.
  • The machine head has been redesigned to improve the performance of each component.
  • Thanks to the machine's low-tension sewing capability and the adjustment function for the needle feed amount (±15%), uneven material feeding and puckering rarely occur, thus enhancing the machine's ability to respond to any change in the material to be sewn.
  • The optimally balanced design of the machine head and the stronger frame structure significantly reduce machine vibration and noise while the machine is being operated.
  • The presser foot can be lifted as high as 13mm.
  • The shape of the machine arm has been designed to allow the operatorio handle any material with ease.
  • Durability and reliability of the machine are improved.
  • The DLN-5410N series is designed to reinforce the feed components, lubrication components, and frame, and to seal hermetically the needle bar fram.
  • As a result, the durability and reliability of the machine are improved and economical efficiency will be remarkably enhanced.

    • SPECIFICATIONS

    Model

    DLN-5410N

    Max Sewing Speed

    2500 sti/min

    Max Stitch Length

    4 mm

    Clearance Under Foot

    5.5 mm by hand, 13 mm by knee

    Needle Bar Stroke

    30.7 mm

    Bobbin

    Metal

    Needle

    DB x 1 (16 x 257) (16 x 230 for leather)

    Hook

    Automatic-lubricating full rotary hook

    Lubrication

    Automatic

    Model

    DLN-5410N

    Max Sewing Speed

    2500 sti/min

    Max Stitch Length

    4 mm

    Clearance Under Foot

    5.5 mm by hand, 13 mm by knee

    Needle Bar Stroke

    30.7 mm

    Bobbin

    Metal

    Needle

    DB x 1 (16 x 257) (16 x 230 for leather)

    Hook

    Automatic-lubricating full rotary hook

    Lubrication

    Automatic
