PRODUCT FEATURES

Improved Operability

  • The stitch length can be easily selected by the stitch dial
  • The machine is provided with many improved features that offer enhanced operability such as an easy-to-observe area around the needle, placement of the bobbin winder on the front face of the machine arm, and a large handwheel.
  • A knee-lifter mechanism is built in the bed. This reduces the pressure required to operate the knee-lifter and facilitates setup.
  • The machine is full-open-type top design makes it possible to fully open the top of the machine arm. Thanks to this design, adjusting works can be done without tiliting the machine head.
  • The machine is equipped as standard with a safety clutch for preventing hook breakage. Reset work can be done simply by pressing a button.

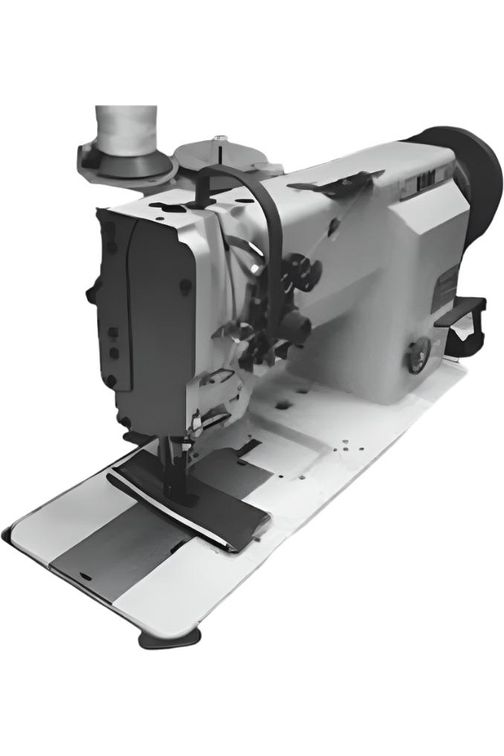

  • LU-1508NH

    The basic machine and its outstanding response to the sewing of heavy materials.

    Kobe's unique feed mechanism promises excellent efficiency of feed. In addition to the standard models of 1-needle machine, other models intended for special purposes are available, including models for extra heavy materials and one having a thread trimmer. The heavy-duty walking foot sewing machine is applicable to an extended range of heavy materials for industrial use, such as cargo handling belts and containers, as well as those for general use, such as car seats, sofas and bags, thereby contributing to both improved quality and increased productivity.

    The area around the needle entry is designed to be easily observed

    Since the needle thread tension-release solenoid is fitted on the rear face of the machine head, the area around the needle entry and one-touch type reverse feed is easily viewable. This substantially contributes to improved operability.

    SPECIFICATIONS

    Model

    LU-1508NH

    Max Sewing Speed

    2,500 sti/min

    Stitch Length

    9mm. (forward/backward)

    Needle Bar Stroke

    38mm

    Lift the Presser Foot

    By hand: 9mm, by knee: 18mm

    Alternating Vertical Movement

    2.5-8.5mm

    Thread Take-up

    Slide Type

    Hook

    Vertical-Axis Double Capacity Hook

    Needle

    135x17 Needle System

    Locus Feed

    Rectangular Feed

    Lubrication

    Centralized oil wick lubrication

    Lubrication Oil

    JUKI New Defrix Oil No.2 (equivalent to ISO VG32)

    Distance from Needle to Machine Arm

    255mm

    Bed Size

    517mm x 178mm

    Weight of the Machine Head

    42.5kg

    Model

    LU-1508NH

    Max Sewing Speed

    2,500 sti/min

    Stitch Length

    9mm. (forward/backward)

    Needle Bar Stroke

    38mm

    Lift the Presser Foot

    By hand: 9mm, by knee: 18mm

    Alternating Vertical Movement

    2.5-8.5mm

    Thread Take-up

    Slide Type

    Hook

    Vertical-Axis Double Capacity Hook

    Needle

    135x17 Needle System

    Locus Feed

    Rectangular Feed

    Lubrication

    Centralized oil wick lubrication

    Lubrication Oil

    JUKI New Defrix Oil No.2 (equivalent to ISO VG32)

    Distance from Needle to Machine Arm

    255mm

    Bed Size

    517mm x 178mm

    Weight of the Machine Head

    42.5kg
