Model

LZH-1290

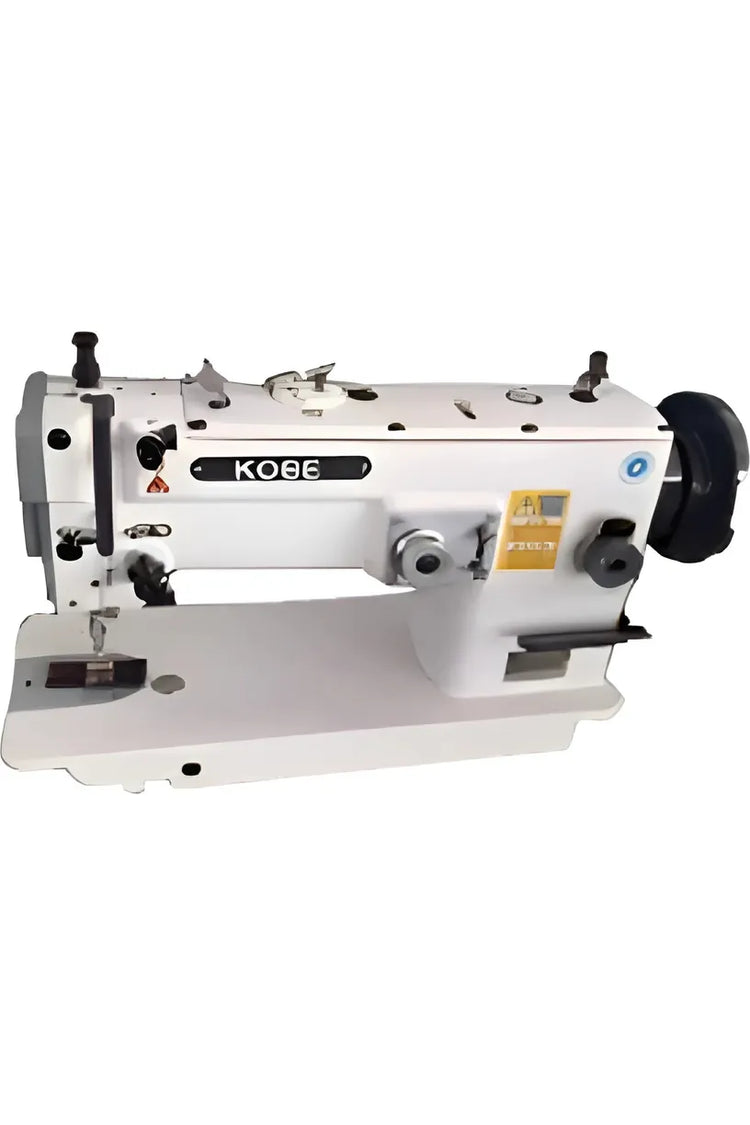

Kobe LZH-1290 1- Needle Lockstitch Zigzag Stitching Machine w/large Hook
Kobe LZH-1290 1- Needle Lockstitch Zigzag Stitching Machine w/large Hook

Kobe LZH-1290 Single Needle Lockstitch Zigzag Stitching Machine w/large Hook

Kobe
$1,899.00
$2,799.00
$1,899.00
Save $900.00

Does Not Qualify for Free Shipping

Disclaimer:

Table tops may differ from those shown. Unassembled Machines may have a staggered delivery.

SPECIFICATIONS

Model

LZH-1290

Max Sewing Speed

2000 sti/min

Max Stitch Length

6 mm (normal/ reverse feed)

Max Zigzag Width

8 mm (adjustable to 10 mm)

Zigzag Width Adjustment Method

By dial

Needle Bar Stroke

35 mm

Lift of the Presser Foot

By knee lifter: 13 mm By hand lifter: 6 mm

Thread Take-Up

Link type

Hook

Horizontal-axis full-rotary double-capacity hook

Needle (at the time of delivery)

135X5 Nm-110 (standard Nm 110)

Thread

850 - 88, B33 - B92, Nm = 120/3 - 30/3

Lubrication

By an oiler (hook: automatic)

Lubrication Oil

New Defrix Oil No.l (equivalent to ISO VG7)

Distance from Needle to Machine Arm

295 mm

Bed Size

477 mm x 178 mm

Weight of the Machine Head

35 kg

Model

LZH-1290

Max Sewing Speed

2000 sti/min

Max Stitch Length

6 mm (normal/ reverse feed)

Max Zigzag Width

8 mm (adjustable to 10 mm)

Zigzag Width Adjustment Method

By dial

Needle Bar Stroke

35 mm

Lift of the Presser Foot

By knee lifter: 13 mm By hand lifter: 6 mm

Thread Take-Up

Link type

Hook

Horizontal-axis full-rotary double-capacity hook

Needle (at the time of delivery)

135X5 Nm-110 (standard Nm 110)

Thread

850 - 88, B33 - B92, Nm = 120/3 - 30/3

Lubrication

By an oiler (hook: automatic)

Lubrication Oil

New Defrix Oil No.l (equivalent to ISO VG7)

Distance from Needle to Machine Arm

295 mm

Bed Size

477 mm x 178 mm

Weight of the Machine Head

35 kg
