BASIC PERFORMANCE

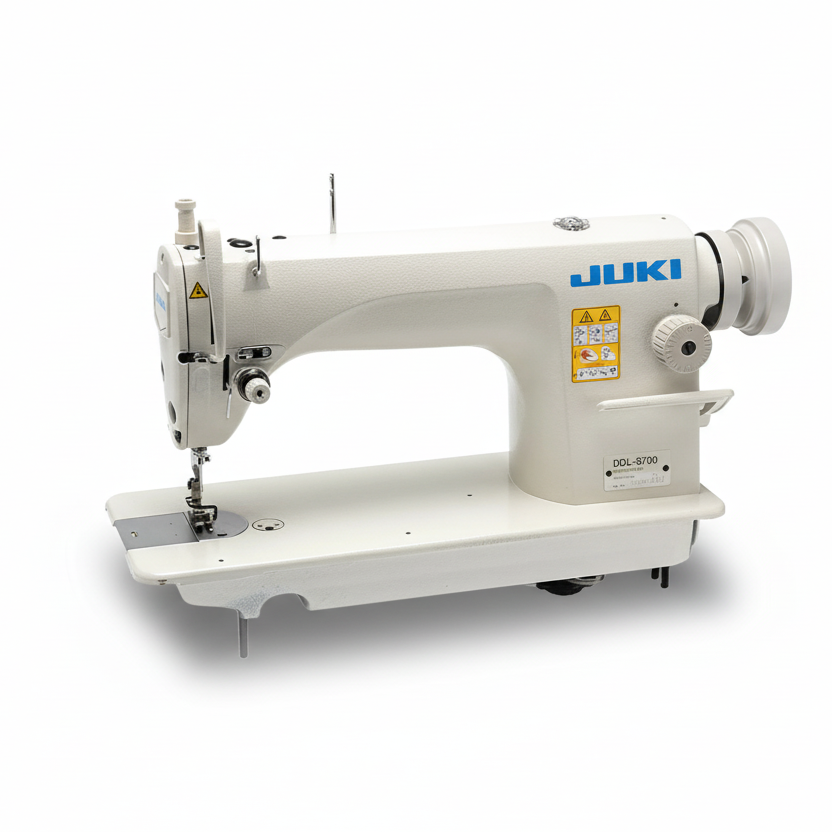

    DDL-8700

    1-needle, Lockstitch Machine

    Machine head design that was developed in pursuit of beauty.

    JUKI's DDL 8700 has optimum-balance and highly rigid machine head were created using the latest 3D-CAD design technology. Thanks to its low vibration and low noise feature, the machine head provides the operator with a comfortable work environment. In addition, the distance from the machine arm to the needle on the front of the machine head is sufficiently wide to allow easy handling of the sewing material.

    The machine inherits the desirable features, such as high-speed stitching performance 5,000sti/min, extreme stitching performance, ease of operation, and reliability, from the highly evaluated previous JUKI lockstitch machines. (DDL-8700: 5,000 sti/min.)

    Sewing mechanism that demonstrates outstanding responsiveness to materials to be sewn

    By thoroughly investigating and modifying the sewing mechanisms in order to achieve low-tension sewing, the machine flexibly responds to various kinds of materials and produces beautiful seams of consistent quality.

    The machine provided as standard with attachment mounting seats

    The machine is provided as standard with extra attachment mounting seats for attachment of new auxiliary parts in the future. The extremely high durability of the seats ensures an extended service with frequent replacement of attachments.

    The machine has easy-to-operate functions to achieve improved operability

    By providing a presser foot with a higher lift (13mm), a light-touch stitch dial, a throat plate with marker grooves that can be used as guide for seam allowance, and other easy-to-operate functions, the burden on the operator is lightened, and productivity is further increased.

    Outstanding responsiveness to the materials being sewn

    By thoroughly investigating and modifying the sewing mechanisms in order to achieve low-tension sewing, this Juki DDL-8700 industrial sewing machine flexibly responds to various kinds of materials and produces beautiful seams of consistent quality.

    SPECIFICATIONS

    Model

    DDL-8700

    Application

    Medium Weight

    Max Sewing Speed

    5,500 sti/min

    Max Stitch Length

    5mm

    Presser Foot

    By hand: 5.5mm, by knee: 13mm

    Needle

    DB×1 (#14) #9~#18134 (Nm90)

    Needle Bar Stroke

    30.7mm

    Feed Dog

    4-row (3-row)

    Hook

    Automatic-lubricating full-rotary hook

    Lubrication

    Automatic

    Lubrication Oil

    JUKI New Defrix Oil No.1 (equivalent to ISO VG7)

    Machine Head Weight

    28kg

    Model

    DDL-8700

    Application

    Medium Weight

    Max Sewing Speed

    5,500 sti/min

    Max Stitch Length

    5mm

    Presser Foot

    By hand: 5.5mm, by knee: 13mm

    Needle

    DB×1 (#14) #9~#18134 (Nm90)

    Needle Bar Stroke

    30.7mm

    Feed Dog

    4-row (3-row)

    Hook

    Automatic-lubricating full-rotary hook

    Lubrication

    Automatic

    Lubrication Oil

    JUKI New Defrix Oil No.1 (equivalent to ISO VG7)

    Machine Head Weight

    28kg
